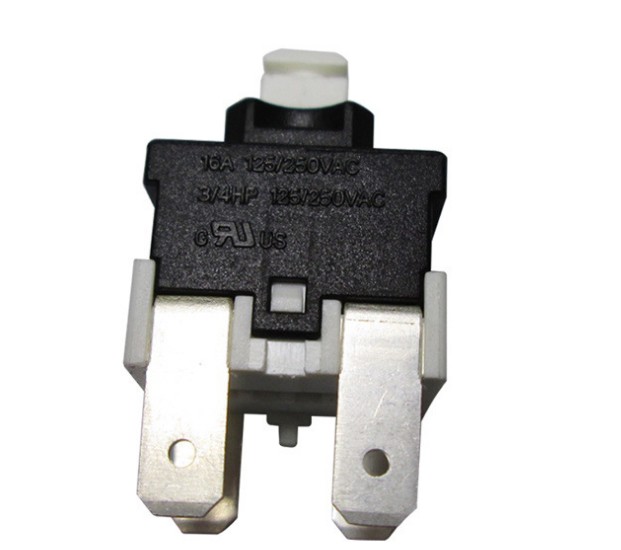

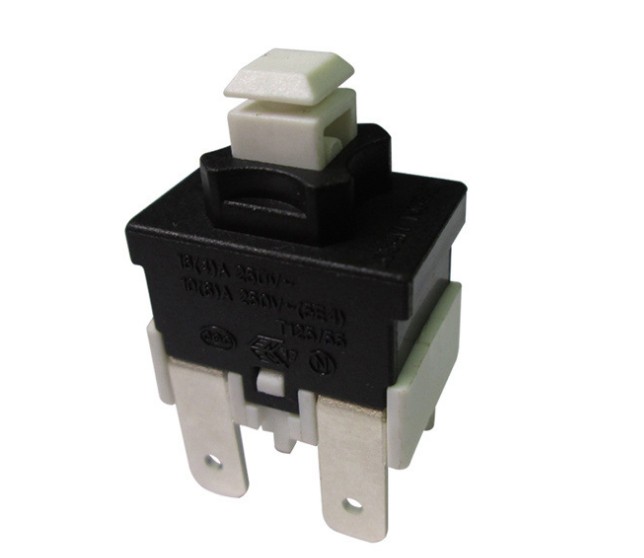

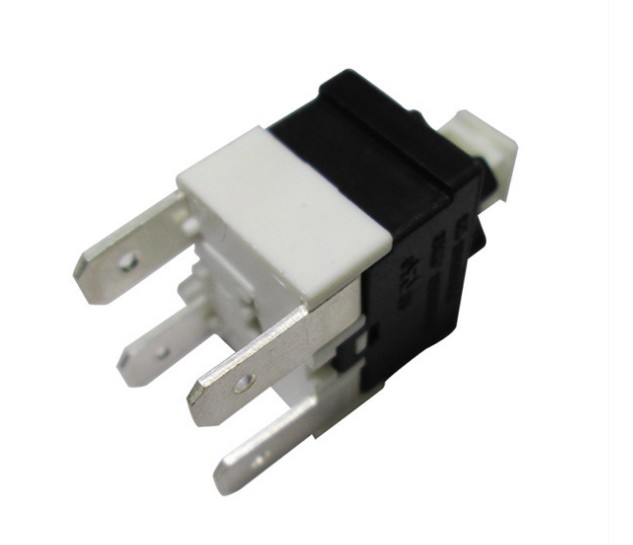

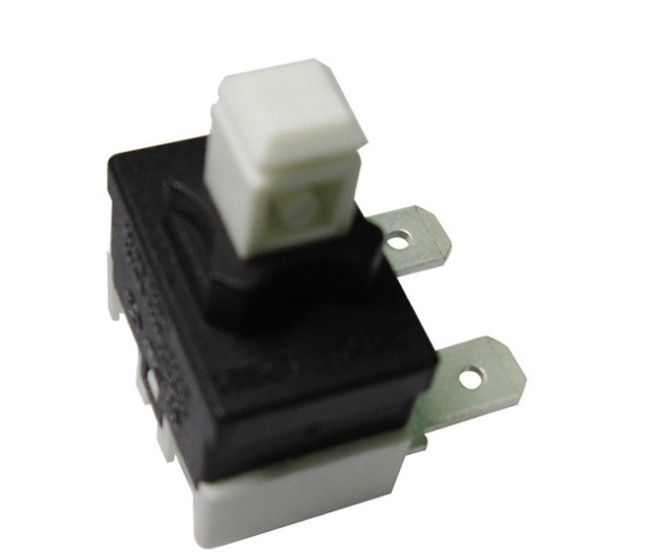

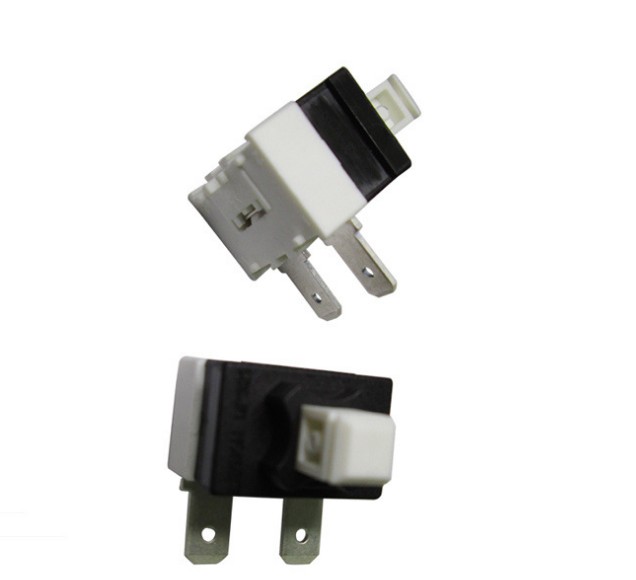

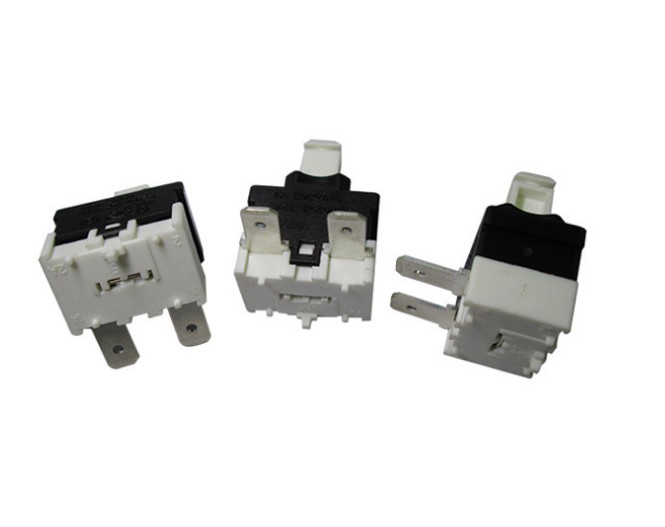

按键开关

时间：2016-09-19 16:43:35    浏览：1323

详细说明：

Raing额定:
16A 125/250VAC 3/4HP 125/250VAC (CUL)
16(4A) 250V-T125/55 (NENC17,CB,NEMKO,CQC)

ELECTRICAL(電氣特性):
(接觸電阻)INITIAL CONTACT RESISTANCE:20mΩ Max.
(操作力量)OPERATION FORCE:300±200gf
(絕緣電阻)INSULATION RESISTANCE:100MΩ Min.500VDC
(電氣壽命)ENDURANCE:10,000 CYCLES
(耐 電 壓)WITHSTAND VOLTAGE:1500VAC FOR 1 MINUTE

MATERIAL(材質):
（外壳）  HOUSING:NYLON 66 UL 94V-0
（柄）    ACTUATOR:PBT+15%GF,UL 94V-0
（弹簧）  SPRING：STAINLESS STEEL WIRE
（接触片）CONTACT HOLE PLATE:BRASS JIS C2680-1/2H，PICKLING（酸洗）
（端子）  TERMINAL:BRASS JIS C2680-1/2H，PICKLING（酸洗）
（接点）  SILVER CONTACT：SILVER ALLOY
（基座）  BASE:PBT+15%GF，UL94V-0
（轴针）  LATCH PIN:301#STAINLESS STEEL，NICKEL PLATED
