翘板开关SS22

时间：2016-10-16 11:55:03    浏览：1142

详细说明：

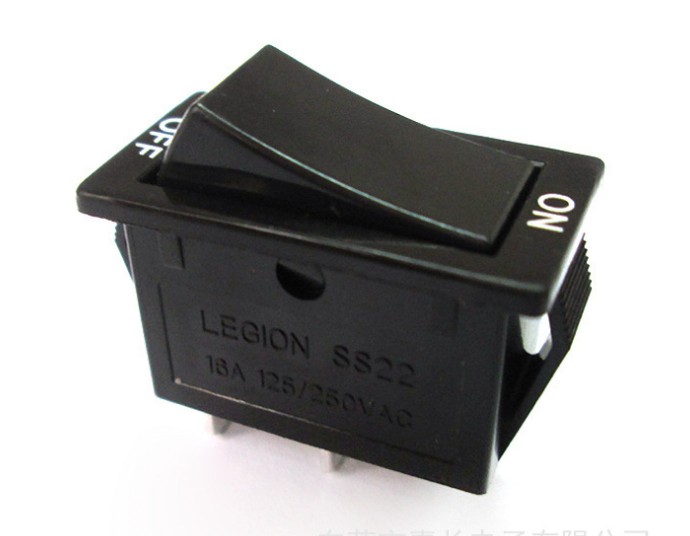

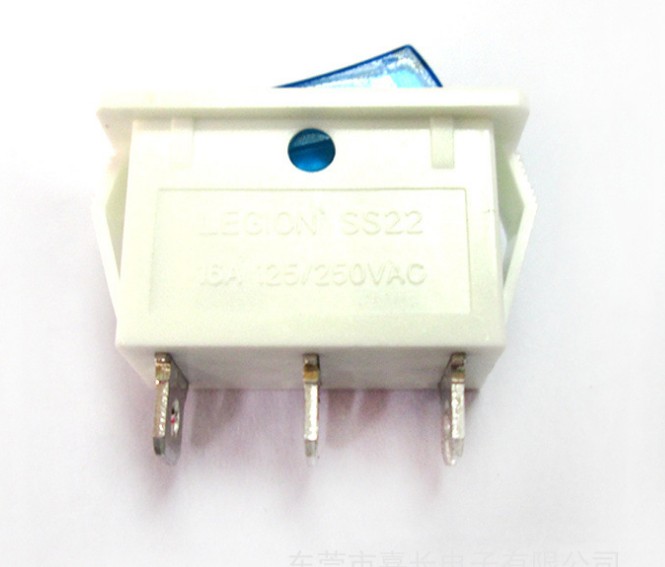

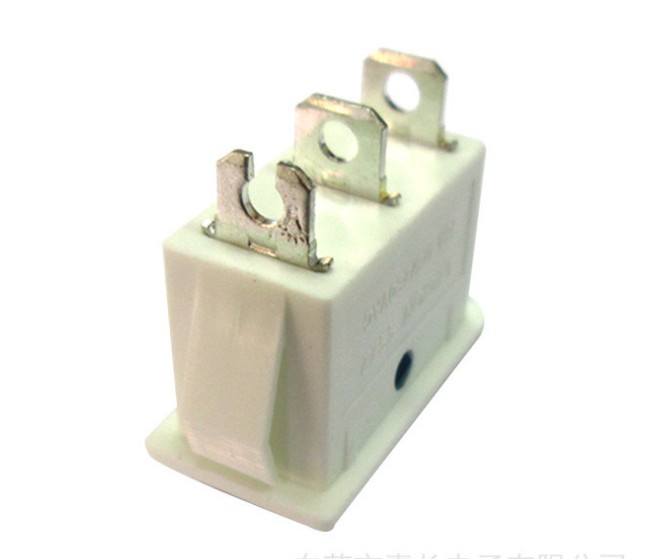

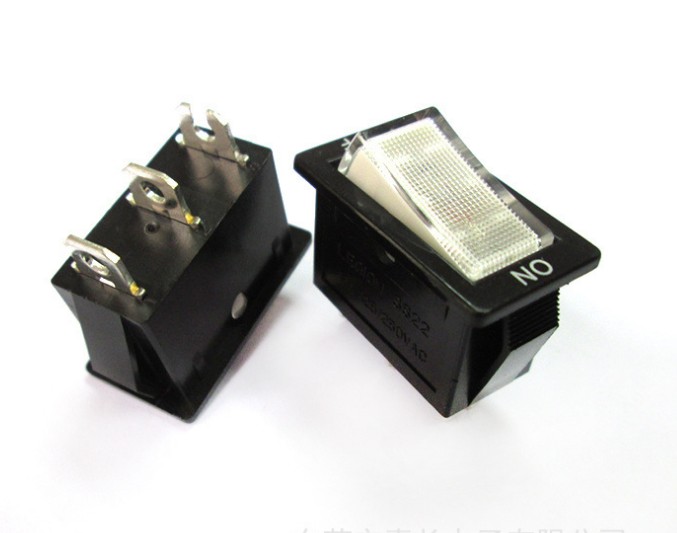

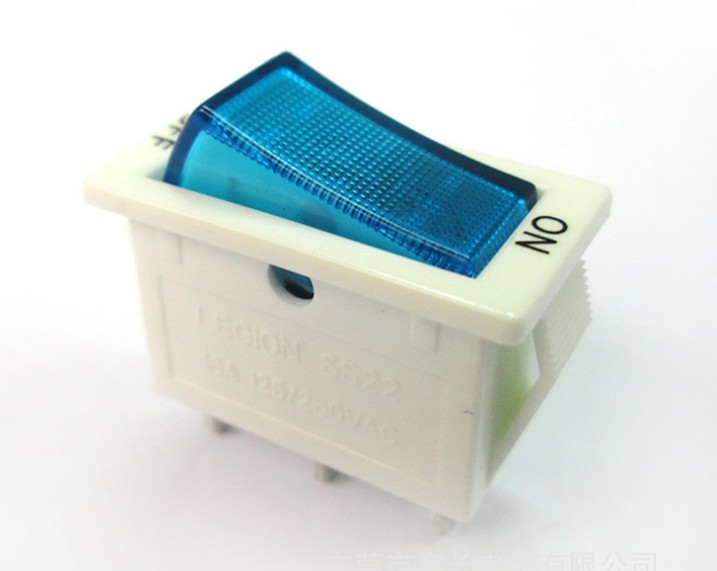

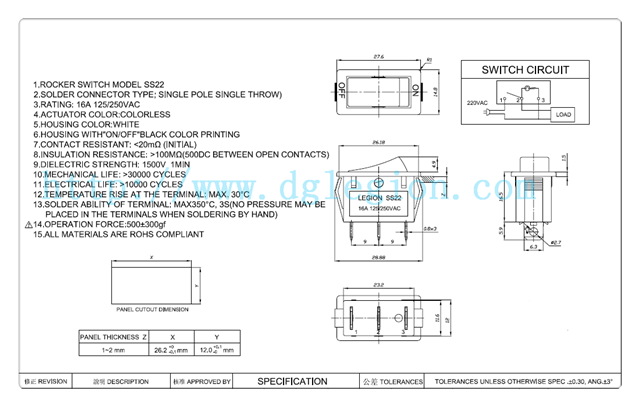

Raing 額定:
16A 125/2520V



1.ROCKER SWITCH MODEL SS22
2.SOLDER CONNECCTOR TYPE:SINGLE POLE SINGLE THROW
3.RATING:16A 125/250VAC
4.ACTUATOR COLOR:COLORLESS
5.HOUSING COLOR:WHITE
6.HOUSING WITH "ON/OFF" BLACK COLOR PRINTING
7.CONTACT RESISTANT:<20MΩ (INITIAL)
8.INSULATION RESISTANCE:>100MΩ(500DC BETWEEN OPEN CONTACTS)
9.DIELECTRIC STRENGTH:1500V 1MIN

10.MECHANICAL LIFE:>30000 CYCLES
11.ELECTRICAL LIFE:>10000 CYCLES
12.TEMPERATURE RISE AT THE TERMINAL:MAX.30’C
13.SOLDER ABILITY OF TERMINAL:MAX350’C (NO PRESSURE MAY BE PLACED IN

     THE TERMINALS WHEN SOLDERING BY HAND)
14.OPERATION FORCE:200±100gf
15.ALL MATERIALS ARE ROHS COMPLIANT



Panel Cut-Out Dimension(開口尺寸)：

PANEL THICKNESS	X			Y
1-2mm	26.2	+0	mm	12.0	+0.1	mm



基本参数：

1. 测试环境: 环境温度范围 : 5 ~ 35℃ 相对湿度范围 : 45 ~ 85%

2. 额定: (1) 12A 125/250VAC FOR UL; C-UL

            (2) . 16A 125/250VAC FOR UL; C-UL .

                   16(4)A 250V~T125/55 FOR VDE/ENEC10

3. 电气性能:

接触电阻: 以微电阻计在DC 0.2V/1A的测试规格值下, 接触电阻值应该小于20mΩ.

绝缘电阻:绝缘电阻计于DC 500V设定值下量测于开路的端子或不同回路的端子, 其绝缘电阻值

              应该大于100MΩ.

耐电压: * 不同极的两支端子开路时, 必须通过一分钟1500VAC的耐电压.

            * 端子与金属外壳, 必须通过一分钟3000VAC的耐电压.

4.材质基座和柄均由尼龙66加30%玻纤组成，防火等级达到94V-0.

5.综述：SS22船形开关多用在欧式插座排插、美式排插、日规插座排插、排插转换器做电源控制。有多种端子,颜色及功能供客户选择！
