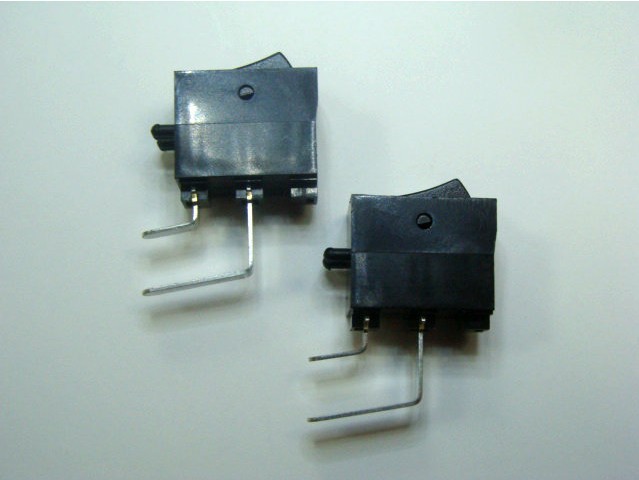

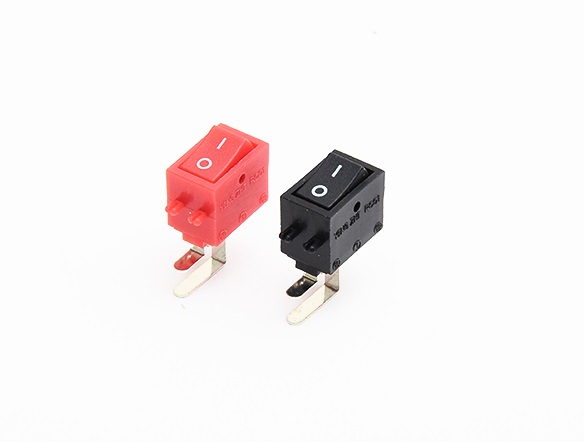

翘板开关SS01
Raing 額定: 3A/6A 125/250V 规格尺寸：13.5*8.5

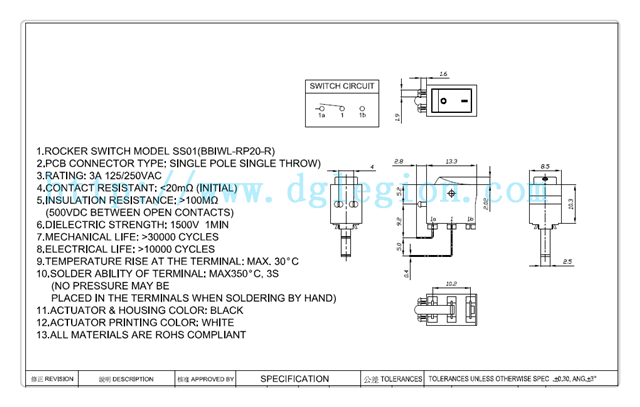

1.ROCKER SWITCH MODEL SS01(BBIWL-RP20-R)
2.PCB CONNECTOR TYPE:SINGLE POLE SINGLE THROW
3.RATING:3A 125/250VAC
4.CONTACT RESISTANT:<20MΩ (INITIAL)
5.DIELECTRIC STRENGTH:1500V 1MIN
6.INSULATION RESISTANCE:>100MΩ
7.MECHANICAL LIFE:>3000 CYCLES (500VDC BETWEEN OPEN CONTACTS)
8.ELECTRICAL LIFE:>10000 CYCLES
9.TEMPERATURE RISE AT THE TERMINAL:MAX.30'C
10. ALL MATERIALS ARE ROHS COMPLIANT
11.ACTUATOR & HOUSING COLOR:BLACK
12.ACTUATOR PRINTING
13.SOLDER ABILITY OF TERMINAL:MAX350'C,3S (NO PRESSURE MAY BE PLACED IN THE TERMINALS WHEN SOLDERING BY HAND)
MATERIAL(材質):
转子：BRASS,NICKEL PLATED
基座:NYLON 66(94V-0)
柄：PC(94V-2)
弹簧:STAINLESS
接触片：COPPER,SILVERPLATED
端子: BRASS,TIN PLATED
接点：Ag CLAD COPPER Alloy
主要用途: 仪器设备、小家电、电源机盒、数字机盒、电气设备、电脑做电源控制
